Create a custom boot logo

To use a custom startup logo on your Neo display, it must meet the following criteria:

Size 1920 x 1080 pixels (Width x Height) with 16 bit depth (RGB 565)

In the steps below we show how to create one in Photoshop™ or GIMP™ (Freeware).

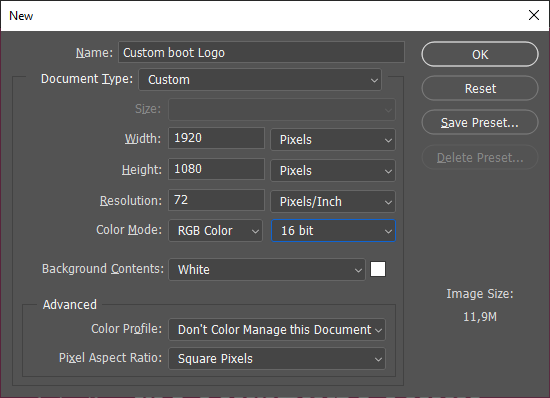

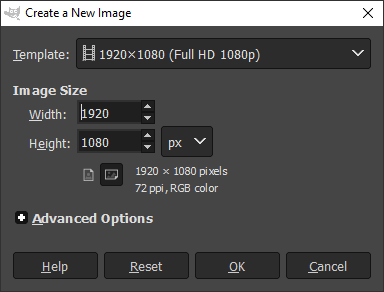

1. Create a New file and use the parameters below:

In Photoshop™

In Gimp™

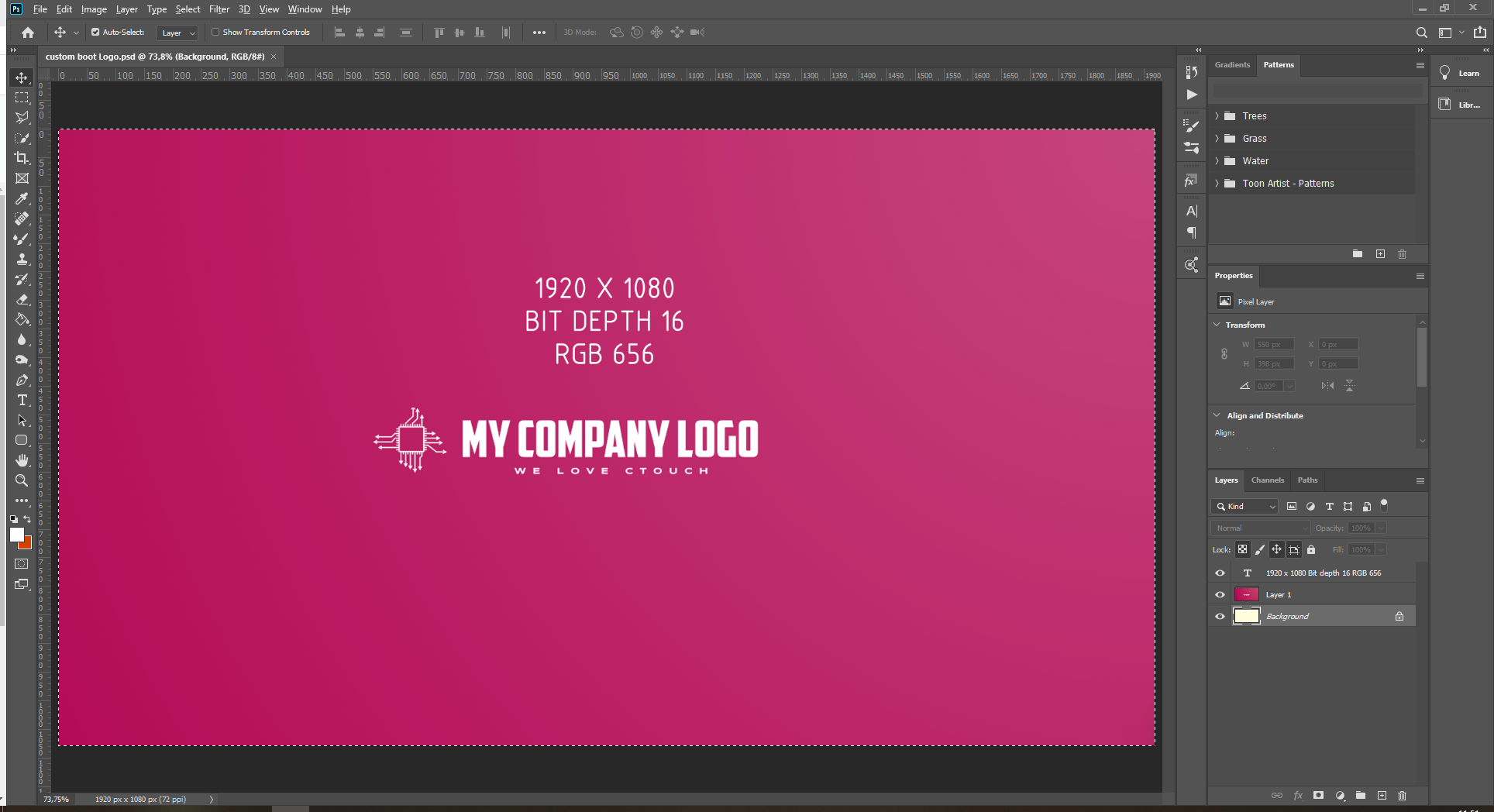

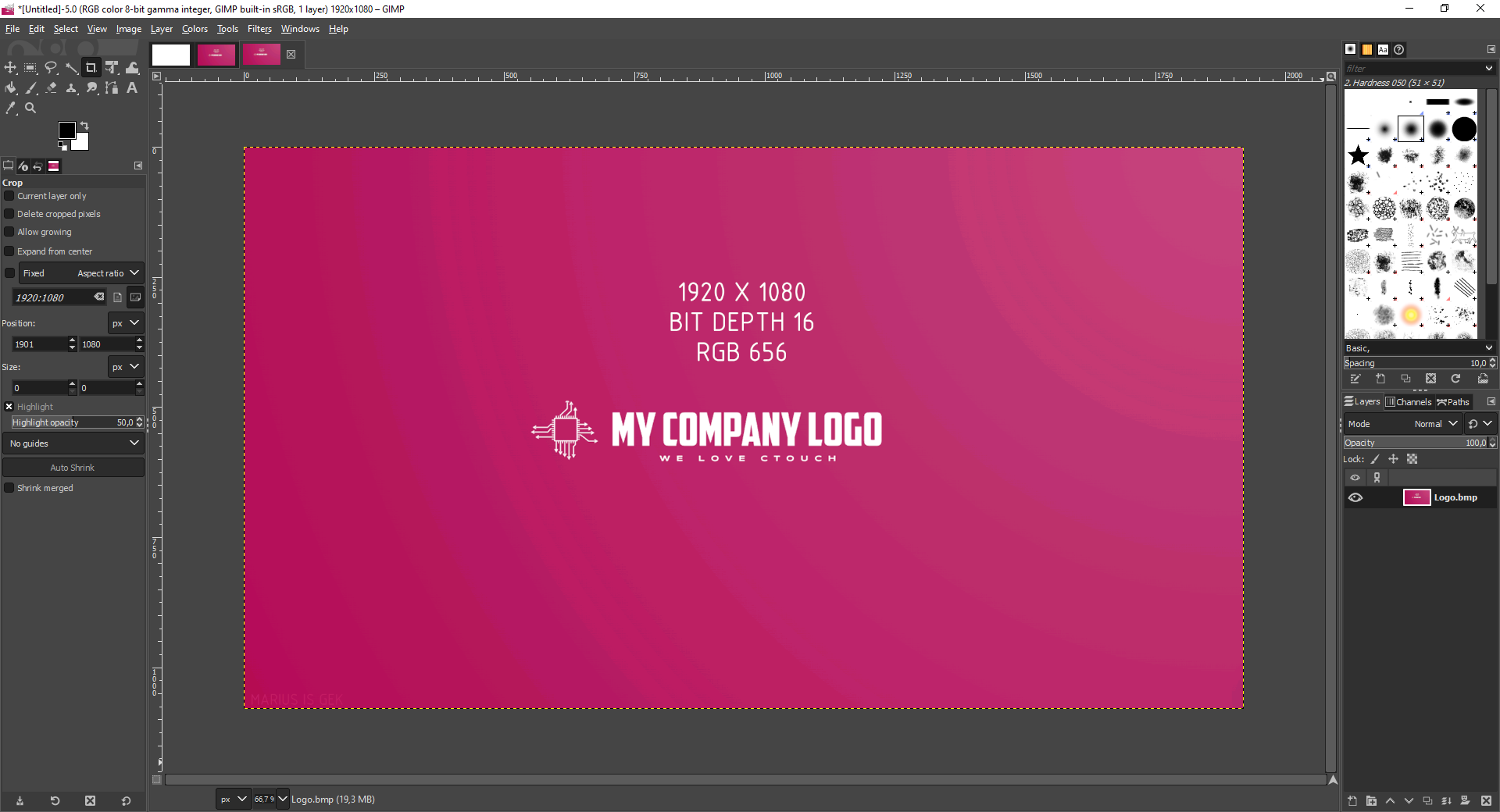

2. Import or create your desired logo or picture

In Photoshop™

In Gimp™

3. Go to File menu and choose Save as (Shift + CTRL + S)

In Photoshop™

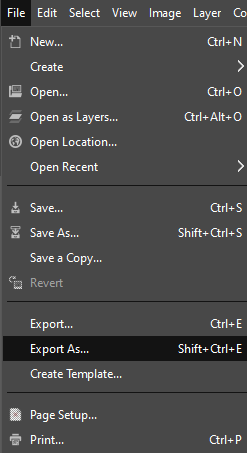

In Gimp™ File menu and choose Export as (Shift + CTRL + E)

4. Use Logo.bmp as file name and select file type BMP and press Save

In Photoshop™

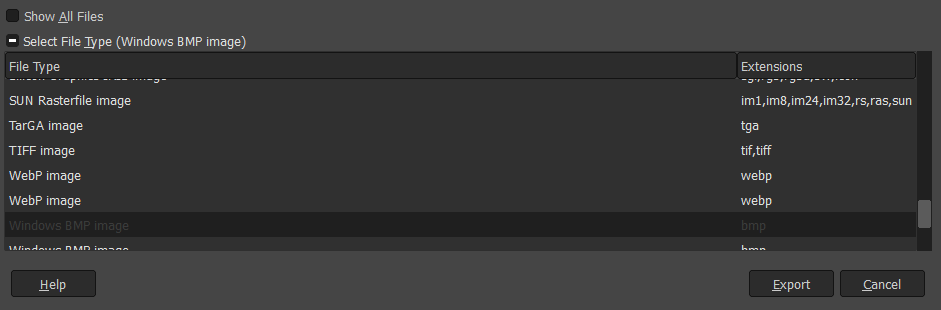

Use Logo.bmp as file name and select file type BMP and press Export

In GIMP™

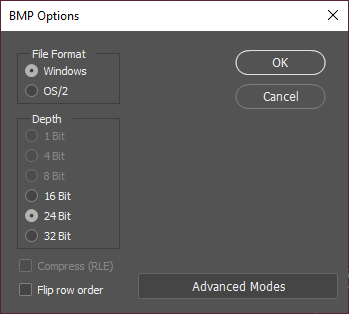

5. The window below will pop up, Click Advanced Modes/ Options

In Photoshop™

In GIMP™

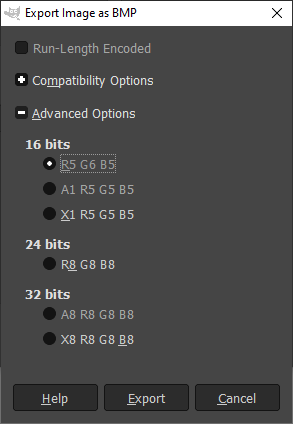

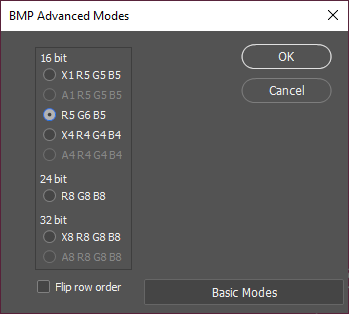

6. Please Check the R5 G6 B5 option under 16 bit and press OK or Export

In Photoshop™

In GIMP™

Finished! The logo can now be set as your custom Boot logo
